  • 1.  Vertical Expanding Box with Text

    Posted 5 days ago
    I'm trying to create facebook style comment box that populates with questions. How do I get the comment box and the text to expand from center?


    ------------------------------
    Erik Sams
    ------------------------------


  • 2.  RE: Vertical Expanding Box with Text

    Ross Staff
    Posted 5 days ago

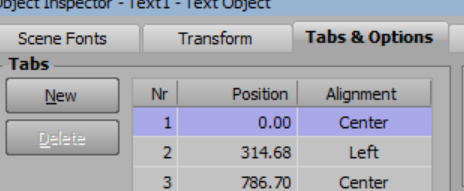

    You need to set your text to centered.

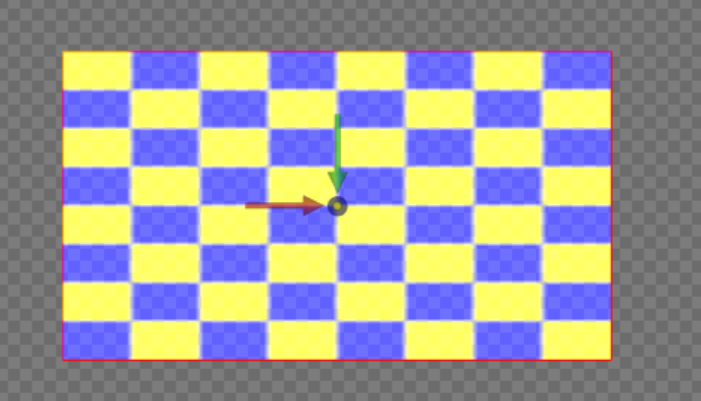

    And you need to make sure your pivot point of your object is in the center.

    be sure the quad is a child of the text.

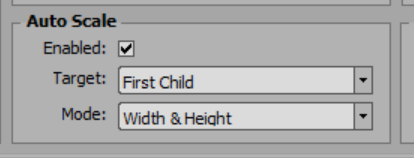

    then use auto scale.

    ------------------------------
    Simon Redmile
    Senior Graphic Programmer & Designer
    Ross Video
    Bristol United Kingdom
    ------------------------------



  • 3.  RE: Vertical Expanding Box with Text

    Posted 5 days ago
    Hi Sams.
    If you want to style facebook, you'd better use a plate object with rounded corner
    Below a scheme in visual logic



    ------------------------------
    Roman Yaroshenko
    chief specialist
    RBC-TV
    Moscow Russian Federation
    ------------------------------



  • 4.  RE: Vertical Expanding Box with Text

    Posted 4 days ago
    Using the vlogic below, I can get the slab to expand with the text the way I want, but the text flows over the slab the longer it gets. I also need to anchor the "Name" textbox to the top of the slab so that it repositions as the slab size increases and decreases. Any suggestions would be greatly appreciated.

    I used the vlogic you provided however my text box is no longer visible


    ------------------------------
    Erik Sams
    ------------------------------



  • 5.  RE: Vertical Expanding Box with Text

    Ross Staff
    Posted 4 days ago
    Your pivot points for the textbox and baseobject need to be aligned.




    ------------------------------
    Simon Redmile
    Senior Graphic Programmer & Designer
    Ross Video
    Bristol United Kingdom
    ------------------------------



  • 6.  RE: Vertical Expanding Box with Text

    Posted 4 days ago
    Hi Sams.
    In this case  use that scheme.




    ------------------------------
    Roman Yaroshenko
    chief specialist
    RBC-TV
    Moscow Russian Federation
    ------------------------------
